Siemens

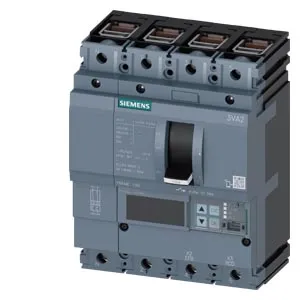

3VA2025-8KQ46-0AA0

Product type: 3VA2025-8KQ46-0AA0

MCCB_IEC_FS100_25A_4P_150KA_ETU8_LSIG

Datasheet

RoHS Compliant

Description

circuit breaker 3VA2 IEC Frame 100 breaking capacity class L Icu=150 kA @ 415 V 4-pole, line protection ETU860, LSIG, In=25 A overload protection Ir=10 A...25 A short-circuit protection Isd=0.6..10x In, Ii=1.5..12x In neutral conductor protection adjustable (OFF, up to 160%) ground-fault protection, can be switched off Ig=0.2...1 x In= tg=0.05-0.8s terminal connection

Energy
Low-voltage - Power distribution
Low-voltage components
Protection, Switching, Measuring and Monitoring Devices
Molded Case Circuit Breakers
SENTRON 3VA Molded Case Circuit Breakers
3VA Molded Case Circuit Breakers, IEC
3VA Molded Case Circuit Breakers up to 1600 A, IEC

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 20 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3VA2025-8KQ46-0AA0.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	3.2 KG / psc.
Commodity number	85362010
Country of origin	CZ
Dimensions (WxHxD)	169x200x145 mm
EAN code	4042948817773
Product group	12P
upc	804766442803
group code	P360
metal factor	LOA-----
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	3VA Molded Case Circuit Breakers up to 1600 A, IEC
net weight (kg)	3,200 Kg
lkz_fdb/ catalogid	LV10.1
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : EAR99
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	5 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.06.2012
