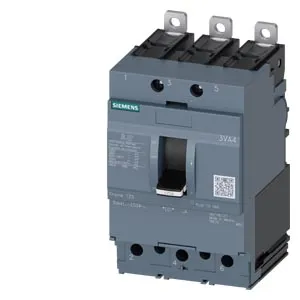

3VA4145-5ED34-3AA0

Product type: 3VA4145-5ED34-3AA0

MCCB_UL_FS125_45A_3P_35KA_TM_ FTFM

Datasheet

RoHS Compliant

Description

circuit breaker 3VA4 UL Frame 125 breaking capacity class M 35 kA @ 480 V 3-pole, line protection TM210, FTFM, In=45 A overload protection Ir=45 A permanently set short-circuit protection Ii=10 x In

Other
Ordering Data Overview

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 15 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3VA4145-5ED34-3AA0.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 12

Product Specifications

Product Attribute	Attribute Value
Weight	0.743 KG / psc.
Commodity number	85362010
Country of origin	MX
Dimensions (WxHxD)	396x472x213 mm
EAN code	4042949432142
Product group	193
upc	Not available
group code	P360
metal factor	LPA-----
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	Ordering Data Overview
net weight (kg)	0,743 Kg
lkz_fdb/ catalogid	LV10
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : EAR99
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	On request
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 13.05.2019
