Siemens

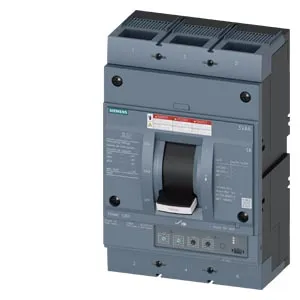

3VA6610-7HM32-0AA0

Product type: 3VA6610-7HM32-0AA0

MCCB_UL_FS1000_1000A_3P_65KA_ETU3_LIG

Datasheet

RoHS Compliant

Description

circuit breaker 3VA6 UL Frame 1000 breaking capacity class C 100 kA @ 480 V 3-pole, line protection ETU330, LIG, In=1000 A overload protection Ir=400 A ...1000 A short-circuit protection Ii=1.5...10 x In ground-fault protection IG=0.2... 1xIn, tg=0.1/0.3s nut keeper kit

Energy
Low-voltage - Power distribution
Low-voltage components
Protection, Switching, Measuring and Monitoring Devices
Molded Case Circuit Breakers
SENTRON 3VA Molded Case Circuit Breakers
3VA Molded Case Circuit Breakers, UL / IEC
3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 45 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3VA6610-7HM32-0AA0.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	14.71 KG / psc.
Commodity number	85362090
Country of origin	MX
Dimensions (WxHxD)	248x360x178 mm
EAN code	4042949439417
Product group	12P
upc	804766980688
group code	P360
metal factor	LPB-----
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
net weight (kg)	12,760 Kg
lkz_fdb/ catalogid	LV10
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : EAR99
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	20 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 09.07.2019
