Siemens

3VA9114-0RS10

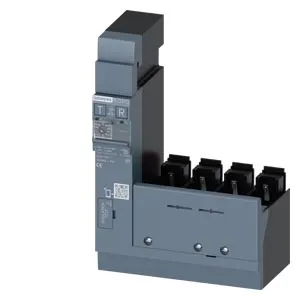

Product type: 3VA9114-0RS10

RES. CURR. DEV. RCD310 4P I=160A U=480V

Datasheet

RoHS Compliant

Description

residual current device RCD310 basic RCD type A side mounted rated resid. current 0.03...5 A at 50/60 Hz tv instantaneous 4-pole In=160 A Ue=127-480 V accessory for: 3VA1 with terminal connection

Energy
Low-voltage - Power distribution
Low-voltage components
Protection, Switching, Measuring and Monitoring Devices
Molded Case Circuit Breakers
SENTRON 3VA Molded Case Circuit Breakers
3VA Molded Case Circuit Breakers, IEC
Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 18 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 3VA9114-0RS10.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.967 KG / psc.
Commodity number	85363090
Country of origin	CN
Dimensions (WxHxD)	144x203x114 mm
EAN code	4042949002246
Product group	12P
upc	804766449284
group code	P360
metal factor	L-A-----
product class	B: return restricted, please contact your Siemens partner/contact
quantity unit	1 Piece
product family	Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A
net weight (kg)	0,967 Kg
lkz_fdb/ catalogid	LV10.1
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : EAR99
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	2 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.04.2014
