Siemens

4EP4000-3DS00

Name: 4EP4000-3DS00
Brand: Siemens
Availability: PreOrder

Product type: 4EP4000-3DS00

COM CHK 3AC400V 50HZ 80A UK4%

RoHS Compliant

Description

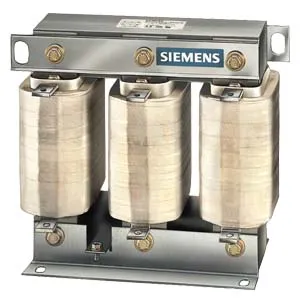

line commutating reactor for rectifier; phases: 3; Un1(V): 400; Ithmax 1(A) / F1(Hz): 80 /50; I LN (A): 72; UK(%): 4; LN(MH): 0.28; temperature rise/insulation class: 40 /B; IP00; connection: flat-type; EN 61558-2-20 >reactor

Automation technology
Industrial controls
Reactors

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 35 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 4EP4000-3DS00.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	10 KG / psc.
Commodity number	85045000
Country of origin	CZ
Dimensions (WxHxD)	230x190x240 mm
EAN code	4001869936833
Product group	4M3
upc	040892568967
group code	R750
metal factor	--3-----
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	Reactors
net weight (kg)	9,000 Kg
lkz_fdb/ catalogid	CC-IC10
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	2 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.07.2006
