Siemens

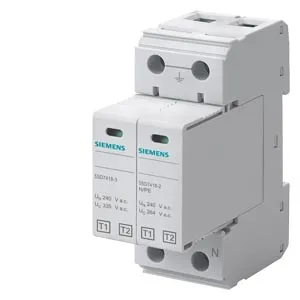

5SD7412-2

Product type: 5SD7412-2

SPD TYPE1,12,5KA,2-POLE

Datasheet

RoHS Compliant

Description

lightning arrester type 1, 12.5 kA, lightning protection level III and IV, for 3-wire networks (L, N, PE), Uc 335/264 V AC, (L-N/N-PE), mechanical defect indication

Energy
Low-voltage - Power distribution
Low-voltage components
Protection, Switching, Measuring and Monitoring Devices
Overvoltage Protection Devices
SENTRON Overvoltage Protection Devices
Basic devices

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 13 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 5SD7412-2.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.354 KG / psc.
Commodity number	85363090
Country of origin	DE
Dimensions (WxHxD)	41x78x106 mm
EAN code	4001869459561
Product group	12G
upc	Not available
group code	P310
metal factor	L-B-----
product class	B: return restricted, please contact your Siemens partner/contact
quantity unit	1 Piece
product family	Basic devices
net weight (kg)	0,354 Kg
lkz_fdb/ catalogid	LV10.1
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	2 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.03.2012
