Siemens

6ES7650-0XH03-2YB0

Product type: 6ES7650-0XH03-2YB0

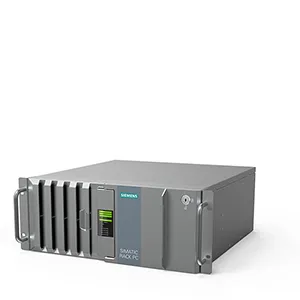

Process Control System IPC847E

Datasheet

RoHS Compliant

Description

Process Control System IPC847E; (Rack PC, 19", 4 U), Xeon E-2176G (6C/12T, 3.7 (4.7) GHz, 12 MB cache, TB, AMT); 512 GB SSD M.2 NVMe to PCIe x4 adapter card (1 slot occupied) (for operating system); RAID1, 480 GB (2x480 GB SSD SATA) in removable drive bay, hot-swap 64 GB DDR4 SDRAM (4x 16 GB), ECC board 11 slots: 3xPCI, 1xPCIe x16 (8), 5xPCIe x16 (4), 2xPCIe x4 (4); Windows Server 2016 Standard Edition, 16-core, 5CAL, 64-bit, MUI (en, de, fr, it, sp, zh); PCS 7 V9.0 SP3 pre-installed; 2x 100/240 V AC redundant industrial power supply unit, power supply cable EU, USA, China

Automation technology
Process control systems
SIMATIC PCS neo
SIMATIC PCS neo system hardware
Process control system server and client
Process control system server

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 25 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 6ES7650-0XH03-2YB0.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	15 KG / psc.
Commodity number	84715000
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	287
upc	195125034556
group code	R336
metal factor	see also metal factor (further details are available on the help page)
product class	B: return restricted, please contact your Siemens partner/contact
quantity unit	1 Piece
product family	Process control system server
net weight (kg)	15,000 Kg
lkz_fdb/ catalogid	STPCS7
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : 5A992
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	80 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 15.10.2018
