Siemens

6ES7972-0BA30-0XA0

Product type: 6ES7972-0BA30-0XA0

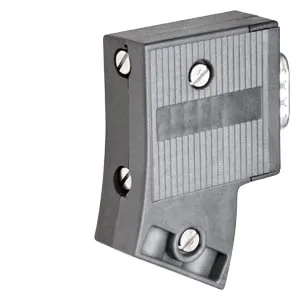

Bus Connector f. PROFIBUS, tilted

Datasheet

RoHS Compliant

Description

SIMATIC DP, bus connection plug f. PROFIBUS w. inclined cable outlet, max. 1.5 Mbaud, insulation displacement method, 15x 57.6x 39.5 mm (WxHxD), without bus terminating resistor and programming device socket

Automation technology
Industrial communication
PROFIBUS
Network components for PROFIBUS
Electrical networks (RS 485)
RS485 bus connector

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 6ES7972-0BA30-0XA0.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.001 KG / psc.
Commodity number	85366990
Country of origin	RO
Dimensions (WxHxD)	6.2x6.9x5.2 cm
EAN code	4025515062912
Product group	2AP
upc	662643219227
group code	R151
metal factor	see also metal factor (further details are available on the help page)
product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
quantity unit	1 Piece
product family	RS485 bus connector
net weight (kg)	0,001 Kg
lkz_fdb/ catalogid	ST76
plm effective date	Product phase-out starting: 01.10.2023
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	1 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 24.07.2006
