Siemens

6FB1103-0AT14-4MB1

Name: 6FB1103-0AT14-4MB1
Brand: Siemens
Availability: PreOrder

Product type: 6FB1103-0AT14-4MB1

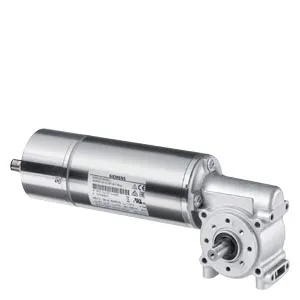

SIDOOR MDG3 L

RoHS Compliant

Description

SIDOOR MDG3 L geared motor, shaft on the left with slot and fitted key A3x5 according to DIN 6888, max. 180 kg of mass to be moved, IP56, 2x M12 for separate motor connection cable, 30 V DC, -20 to +50 °C

Automation technology
Products for specific requirements
Automatic door controls
for industrial applications
Geared motors

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 18 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 6FB1103-0AT14-4MB1.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	2.9 KG / psc.
Commodity number	85013100
Country of origin	DE
Dimensions (WxHxD)	180x150x460 mm
EAN code
Product group	478
upc	804766819995
group code	R220
metal factor	see also metal factor (further details are available on the help page)
product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
quantity unit	1 Piece
product family	Geared motors
net weight (kg)	2,900 Kg
lkz_fdb/ catalogid	DA68
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : EAR99H
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	60 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.01.2014
