6GK5204-2BB10-2AA3

Product type: 6GK5204-2BB10-2AA3

SCALANCE X101-1LD

Datasheet

RoHS Compliant

Description

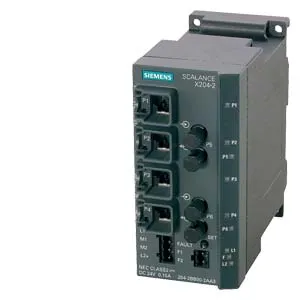

SCALANCE X204-2, managed IE switch, 4x 10/100 Mbit/s RJ45 ports, 2x 100 Mbit/s multimode BFOC, LED diagnostics, error signaling contact with set pushbutton, redundant power supply, PROFINET IO device, network management; Redundancy Manager integrated, incl. electron. manual on CD-ROM, C-PLUG optional.

Other
Ordering Data Overview

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 6GK5204-2BB10-2AA3.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.998 KG / psc.
Commodity number	85176200
Country of origin	DE
Dimensions (WxHxD)	19x25.1x14.2 cm
EAN code	4019169141536
Product group	5N2
upc	662643425024
notes	Successor hint: Successor SCALANCE XC206-2 or SCALANCE XC206-2SFP
group code	R320
metal factor	see also metal factor (further details are available on the help page)
product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
quantity unit	1 Piece
product family	Ordering Data Overview
net weight (kg)	0,998 Kg
lkz_fdb/ catalogid	IK-A
plm effective date	Product phase-out since: 01.10.2019
product lifecycle (plm)	PM400:Phase Out Started
export control regulations	AL : N / ECCN : 9N9999
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	5 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Given
