Siemens

6GK5991-2VA00-8AA2

Product type: 6GK5991-2VA00-8AA2

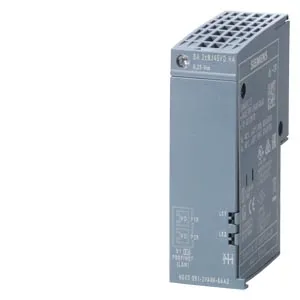

SIMATIC BA 2xRJ45VD HA

Datasheet

RoHS Compliant

Description

BA 2xRJ45VD HA, bus adapter VVD (Variable Distance), for Ethernet- communication via 2-, 4- or 8-wire-copper cables, 2xRJ45 sockets for industrial Ethernet and PROFINET, extended temperature range -40 °C...+70 °C, conformal coating, installation altitude up to 4000m, distances up to 2 wire up to 1000 m at 10 Mbit/s 2 wire up to 100 m at 100 Mbit/s 4 wire up to 300 m at 100 Mbit/s 8 wire up to 500 m at 100 Mbit/s .

Other
Ordering Data Overview

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 40 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 6GK5991-2VA00-8AA2.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.3 KG / psc.
Commodity number	85176200
Country of origin	DE
Dimensions (WxHxD)	19x25x14.1 cm
EAN code	4047622572146
Product group	5N2
upc	804766955907
group code	R320
metal factor	see also metal factor (further details are available on the help page)
product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
quantity unit	1 Piece
product family	Ordering Data Overview
net weight (kg)	0,300 Kg
lkz_fdb/ catalogid	IK
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : 9N9999
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	On request
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.07.2006
