Siemens

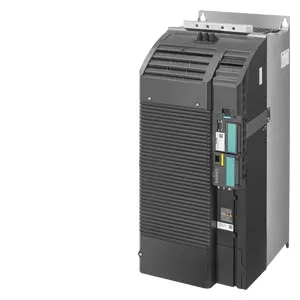

6SL3210-1KE31-4UF1

Product type: 6SL3210-1KE31-4UF1

SINAMICS G120C PN 75,0KW UNFIL

Datasheet

RoHS Compliant

Description

SINAMICS G120C rated power: 75.0 kW with 150% overload for 3 s. 380-480 V 3AC +10/-20% 47-63 Hz unfiltered I/O interface: 6 DI, 2 DO, 1 AI, 1 AO Safe Torque Off integrated fieldbus integrated: PROFINET-PN degree of protection IP20/UL open type size: FSF 708x 305x 357 (HxWxD) external 24 V

Drive technology
Converters
Low-voltage converters
Standard performance frequency converters
SINAMICS G120C compact converters
SINAMICS G120C compact converters

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 25 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 6SL3210-1KE31-4UF1.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	59 KG / psc.
Commodity number	85044086
Country of origin	DE
Dimensions (WxHxD)	469x385x745 mm
EAN code	4042948673294
Product group	340
upc	804766375460
group code	R220
metal factor	see also metal factor (further details are available on the help page)
product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
quantity unit	1 Piece
product family	SINAMICS G120C compact converters
net weight (kg)	59,000 Kg
lkz_fdb/ catalogid	D11.1SD
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : EAR99H
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	60 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 13.02.2017
