Siemens

6SL3210-1PH26-2UL0

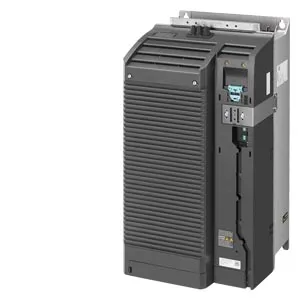

Product type: 6SL3210-1PH26-2UL0

SINAMICS PM240-2 IP20-FSE-U-690V-55kW

Datasheet

RoHS Compliant

Description

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC500-690V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 45KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 55kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 551 X 275 X 237 (HXWXD), FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

Drive technology
Converters
Low-voltage converters
Standard performance frequency converters
SINAMICS G120 standard converters
Power Modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 40 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 6SL3210-1PH26-2UL0.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	27.1 KG / psc.
Commodity number	85044095
Country of origin	DE
Dimensions (WxHxD)	400x595x350 mm
EAN code	4042948668337
Product group	339
upc	804766091070
group code	R220
metal factor	see also metal factor (further details are available on the help page)
product class	D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer)
quantity unit	1 Piece
product family	Power Modules
net weight (kg)	27,100 Kg
lkz_fdb/ catalogid	D11.1SD
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : 3A999A
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	80 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.01.2017
