Siemens

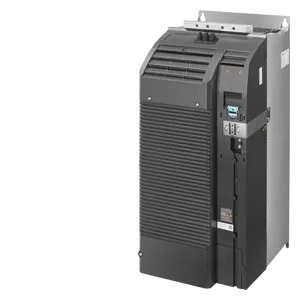

6SL3210-1PH31-4UL0

Product type: 6SL3210-1PH31-4UL0

SINAMICS PM240-2 IP20-FSF-U-690V-132kW

Datasheet

RoHS Compliant

Description

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC500-690V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 110KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 132kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

Drive technology
Converters
Low-voltage converters
Standard performance frequency converters
SINAMICS G120 standard converters
Power Modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 35 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 6SL3210-1PH31-4UL0.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	61 KG / psc.
Commodity number	85044095
Country of origin	DE
Dimensions (WxHxD)	469x385x745 mm
EAN code	4042948668375
Product group	339
upc	804766361920
group code	R220
metal factor	see also metal factor (further details are available on the help page)
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	Power Modules
net weight (kg)	61,000 Kg
lkz_fdb/ catalogid	D11.1SD
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : 3A999A
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	60 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.01.2017
