Siemens

6SL3211-1PE31-1UL0

Name: 6SL3211-1PE31-1UL0
Brand: Siemens
Availability: PreOrder

Product type: 6SL3211-1PE31-1UL0

Description

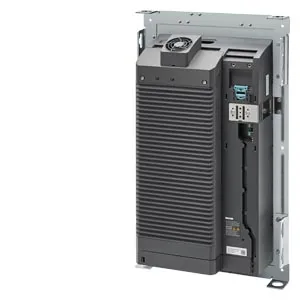

SINAMICS G120 POWER MODULE PM240-2 Push Through, WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 45KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 55kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 615x354x237 (HXWXD), FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 SP6

Other
Ordering Data Overview

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 6SL3211-1PE31-1UL0.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	30.5 KG / psc.
Commodity number	85044088
Country of origin	Germany
Dimensions (WxHxD)	500x700x372 mm
EAN code	4042948675854
Product group	3A2
upc	804766497568
notes	Successor hint: SIOS ID 109796691This product is a spare part product. More information you'll get via "Alternative Buying Options".If you need assistance please contact our local Siemens office
group code	R2S3
metal factor	see also metal factor (further details are available on the help page)
product class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit	1 Piece
product family	Not available
net weight (kg)	30,500 Kg
lkz_fdb/ catalogid	D11.1SD
plm effective date	Product is cancelled since: 01.10.2022
product lifecycle (plm)	PM410:Product cancellation
export control regulations	ECCN : EAR99H / AL : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	1 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.08.2017
