Siemens

6SL3223-0DE31-5BG1

Product type: 6SL3223-0DE31-5BG1

SINAMICS PM230-IP55-FSC-B-400V 15KW

Datasheet

RoHS Compliant

Description

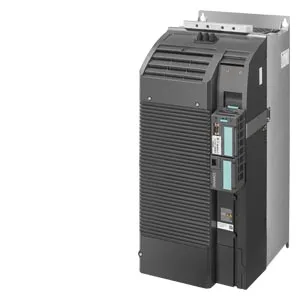

SINAMICS G120P Power Module PM230 with integrated Class B filter Degree of protection IP55/UL Type 12 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 15kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature -10 to +40 °C (LO) 620x 230x 249 (HxWxD), FSC without Control Unit and operating unit released for CU230P-2 Firmware version V4.3.2 or higher

Drive technology
Converters
Low-voltage converters
Industry-specific frequency converters
SINAMICS G120P and G120P Cabinet pump, fan, compressor converters
SINAMICS G120P, built-in and wall-mounted units, IP20 and IP55
PM230 Power Modules, 0.37 kW to 90 kW
PM230 Power Modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 35 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 6SL3223-0DE31-5BG1.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	9.5 KG / psc.
Commodity number	85044095
Country of origin	GB
Dimensions (WxHxD)	0.259x0.686x0.296 m
EAN code	4042948671689
Product group	347
upc	804766369797
group code	R220
metal factor	see also metal factor (further details are available on the help page)
product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
quantity unit	1 Piece
product family	PM230 Power Modules
net weight (kg)	9,500 Kg
lkz_fdb/ catalogid	D11.1SD
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	90 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 01.07.2006
