7MF1567-3BD10-1AA4
Siemens

7MF1567-3BD10-1AA4

Product type: 7MF1567-3BD10-1AA4

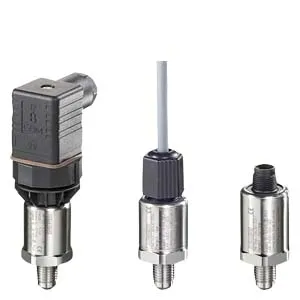

SITRANS P220 AESA Pressure Transmitter

RoHS Compliant

Description

SITRANS P220 AESA Transmitter for gage pressure fully welded version non-linearity 0,25% (typic.) wetted parts material: stainless steel non-wetted parts material: stainless steel Measuring range for gauge:0 to 2,5 bar, Overload-press. 6,25 bar Output signal: 0 to 10 V three-wire connection power supply DC 12 to 33V without explosion protection Electrical connection: plug to DIN EN 175301-803-A, with connector M16; Process Connection: G1/2" to EN837-1 Special version for AESA/D
Read More
  • Other
  • Ordering Data Overview
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 35 Days
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.2 KG / psc.
Commodity number90262020
Country of originCH
Dimensions (WxHxD)
EAN code
Product group8P4
upc Not available
group code R3P0
metal factor see also metal factor (further details are available on the help page)
product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
quantity unit 1 Piece
product family Ordering Data Overview
net weight (kg) 0,200 Kg
lkz_fdb/ catalogid FI01-1
product lifecycle (plm) PM300:Active Product
export control regulations AL : N / ECCN : N
surcharge for raw material see also metal factor (further details are available on the help page)
standard lead time ex-works 165 Day(s)
weee (2012/19/eu) take-back obligation Yes
compliance with the substance restrictions according to rohs directive Since: 20.07.2017
