Siemens

7MH4965-2AA01

Product type: 7MH4965-2AA01

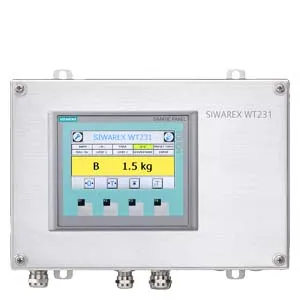

SIWAREX WT231 Weighing terminal

Datasheet

Description

SIWAREX WT231, single-channel weighing terminal in stainless steel enclosure for platform or hopper scales with analog load cells / strain gauge (full bridges), 4xDI, 4xDQ, 1xAQ, 1xRS 485, 1xLC load cell interface (1-4mV/V), 100-240 VAC, IP65, 0-40 degrees Celsius. Detailed load cell diagnostics with digital junction box SIWAREX DB (7MH5001-0AD20 or 7MH5001-0AD01)

Automation technology
Process instrumentation
Weight measurement
Stand-alone
Platform and hopper scales
SIWAREX WT231 weighing terminal

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 20 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 7MH4965-2AA01.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	4.55 KG / psc.
Commodity number	85389091
Country of origin	CN
Dimensions (WxHxD)	315x185x290 mm
EAN code	4047623603528
Product group	8W3
upc	804766218200
group code	R3P5
metal factor	see also metal factor (further details are available on the help page)
product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
quantity unit	1 Piece
product family	SIWAREX WT231 weighing terminal
net weight (kg)	4,000 Kg
lkz_fdb/ catalogid	WT10
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	200 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	not available
