Siemens

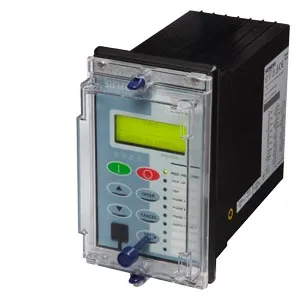

7SR1004-3LA20-2DB0

Product type: 7SR1004-3LA20-2DB0

Direct. O/C relay (Argus)

Datasheet

RoHS Compliant

Description

ARGUS overcurrent relay Conformal coating on PCBA Directional, size 4 molded case, 4 CT, 3 VT, 10 LEDs, 9 binary inputs/ 6 binary outp. Measuring input: 1/5 A, 50/60 Hz, 63.5/110 V auxiliary voltage: 60 to 240 V AC/DC, binary input threshold 44 V AC/DC Standard version - no cover Communication: front port: USB and rear: RS485 supporting IEC 60870-5-103 or MODBUS RTU or DNP 3.0. Front fascia: w. breaker control pushbuttons Protection function: Standard version plus autoreclose (79)

Energy
Energy Automation and Smart Grid
Protection
Reyrolle
Overcurrent and Feeder Protection
Reyrolle 7SR10 Argus - 4xI 0/3xV

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 30 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 7SR1004-3LA20-2DB0.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.6 KG / psc.
Commodity number	85364900
Country of origin	IN
Dimensions (WxHxD)	0.22x0.16x0.25 m
EAN code	4025515728177
Product group	18E
upc	Not available
group code	U321
metal factor	see also metal factor (further details are available on the help page)
product class	B: return restricted, please contact your Siemens partner/contact
quantity unit	1 Piece
product family	Reyrolle 7SR10 Argus - 4xI 0/3xV
net weight (kg)	1,600 Kg
lkz_fdb/ catalogid	PTD/EA
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	60 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 14.10.2014
