Siemens

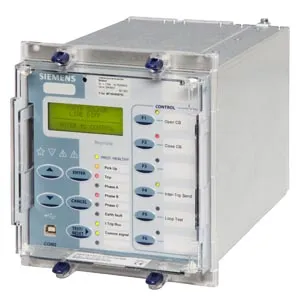

7SR1812-1MB12-0CA0

Product type: 7SR1812-1MB12-0CA0

Line differential protection relay

Datasheet

RoHS Compliant

Description

Solkor 7SR18 differential protection, E6 case size, 3 binary inputs, 5 binary outputs, 10 LEDs + 6 keys with LED, measuring input: 4 CTs (1A/5A), 24-250 V DC, 100 - 230 V AC, binary input threshold 19 V DC, signal: optical fibre link (820 nm) (ST connection) 2 km, communication interface: USB front, RS485 rear, IEC 60870-5-103 + Modbus RTU + DNP3 (user selectable), protection function packages: standard version

Other
Ordering Data Overview

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 30 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 7SR1812-1MB12-0CA0.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	4.26 KG / psc.
Commodity number	85364900
Country of origin	IN
Dimensions (WxHxD)	0.256x0.262x0.39 m
EAN code	4025515728757
Product group	18E
upc	Not available
group code	U321
metal factor	see also metal factor (further details are available on the help page)
product class	B: return restricted, please contact your Siemens partner/contact
quantity unit	1 Piece
product family	Ordering Data Overview
net weight (kg)	4,260 Kg
lkz_fdb/ catalogid	PTD/EA
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	60 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 04.03.2015
