Siemens

8US1213-4AH04

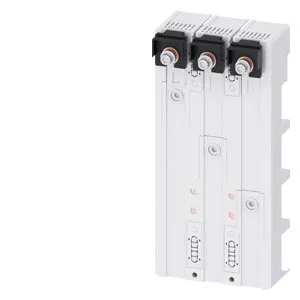

Product type: 8US1213-4AH04

BUSBAR ADAPTER MCCB, 3pole, 590 A

Datasheet

RoHS Compliant

Description

Device adapter MCCB, 3-pole, 590 A Busbar center-to-center spacing 60 mm for 3VA13/14/53/54/23/24/63/64 mm Contacting elements 300x140 mm for the adapter are provided

Energy
Low-voltage - Power distribution
Low-voltage components
Protection, Switching, Measuring and Monitoring Devices
Busbar systems

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 23 Days Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 8US1213-4AH04.
See all ZWOD Sales and Logistics Ltd Siemens products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	2.606 KG / psc.
Commodity number	85369095
Country of origin	DE
Dimensions (WxHxD)	140x70x300 mm
EAN code	4001869508108
Product group	14O
upc	804766341540
group code	P360
metal factor	see also metal factor (further details are available on the help page)
product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
quantity unit	1 Piece
product family	Busbar systems
net weight (kg)	2,689 Kg
lkz_fdb/ catalogid	LV10.1
product lifecycle (plm)	PM300:Active Product
export control regulations	AL : N / ECCN : N
surcharge for raw material	see also metal factor (further details are available on the help page)
standard lead time ex-works	100 Day(s)
weee (2012/19/eu) take-back obligation	Yes
compliance with the substance restrictions according to rohs directive	Since: 14.03.2014
