8WH1020-0AF00
Siemens

8WH1020-0AF00

Product type: 8WH1020-0AF00

DO-ST-KL. 2,5QMM, 5,2MM,GREY

RoHS Compliant

Description

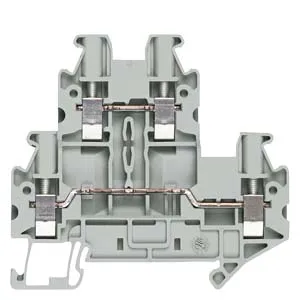

Terminal, screw terminal, two-tier, through-type terminal, 2.5 mm², gray
Read More
  • Energy
  • Low-voltage - Power distribution
  • Low-voltage components
  • Protection, Switching, Measuring and Monitoring Devices
  • Terminal blocks
  • SENTRON Screw terminals
  • 8WH terminals
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 25 Days
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 50
Product Specifications
Product AttributeAttribute Value
Weight0.016 KG / psc.
Commodity number85369010
Country of originDE
Dimensions (WxHxD)67x5x70 mm
EAN code4001869403137
Product group12X
upc 887621419318
group code P310
metal factor see also metal factor (further details are available on the help page)
product class B: return restricted, please contact your Siemens partner/contact
quantity unit 1 Piece
product family 8WH terminals
net weight (kg) 0,016 Kg
lkz_fdb/ catalogid LV10.2
product lifecycle (plm) PM300:Active Product
export control regulations AL : N / ECCN : N
surcharge for raw material see also metal factor (further details are available on the help page)
standard lead time ex-works 7 Day(s)
weee (2012/19/eu) take-back obligation Yes
compliance with the substance restrictions according to rohs directive Since: 28.05.2009
